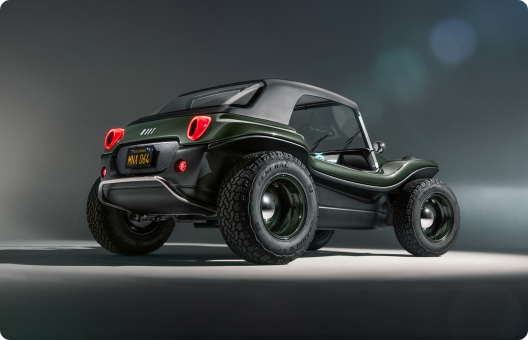

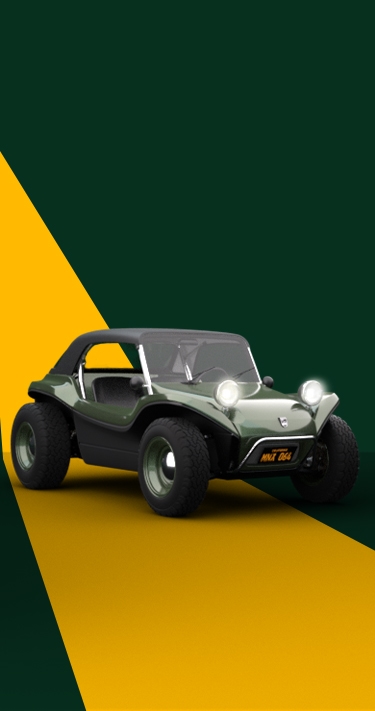

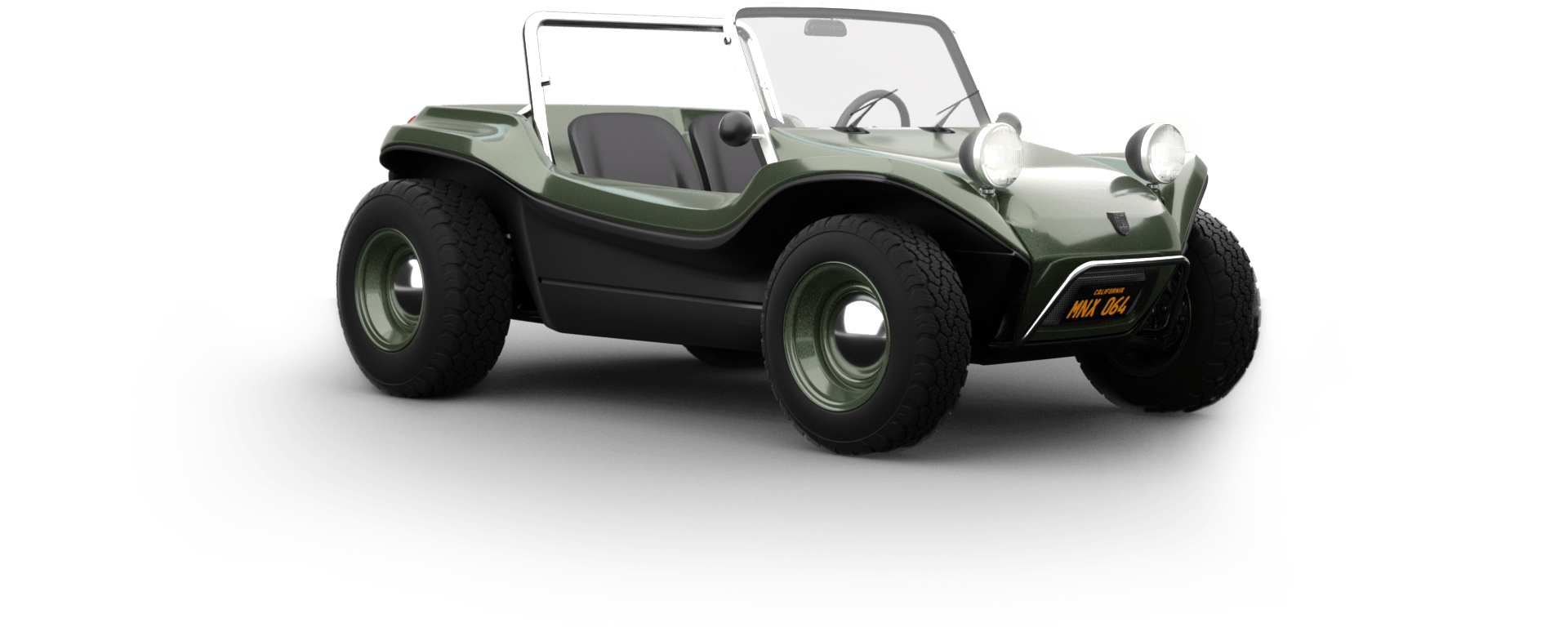

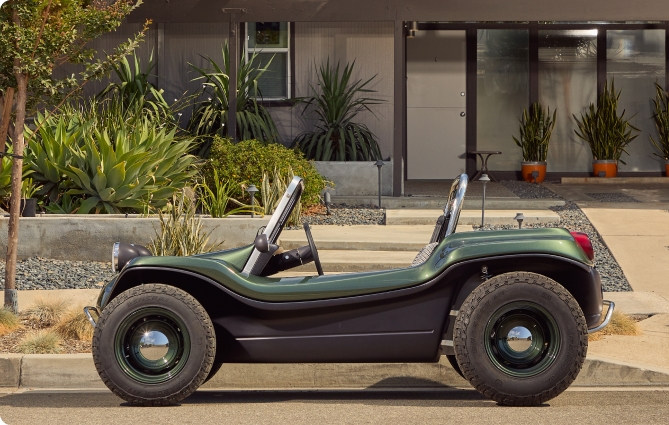

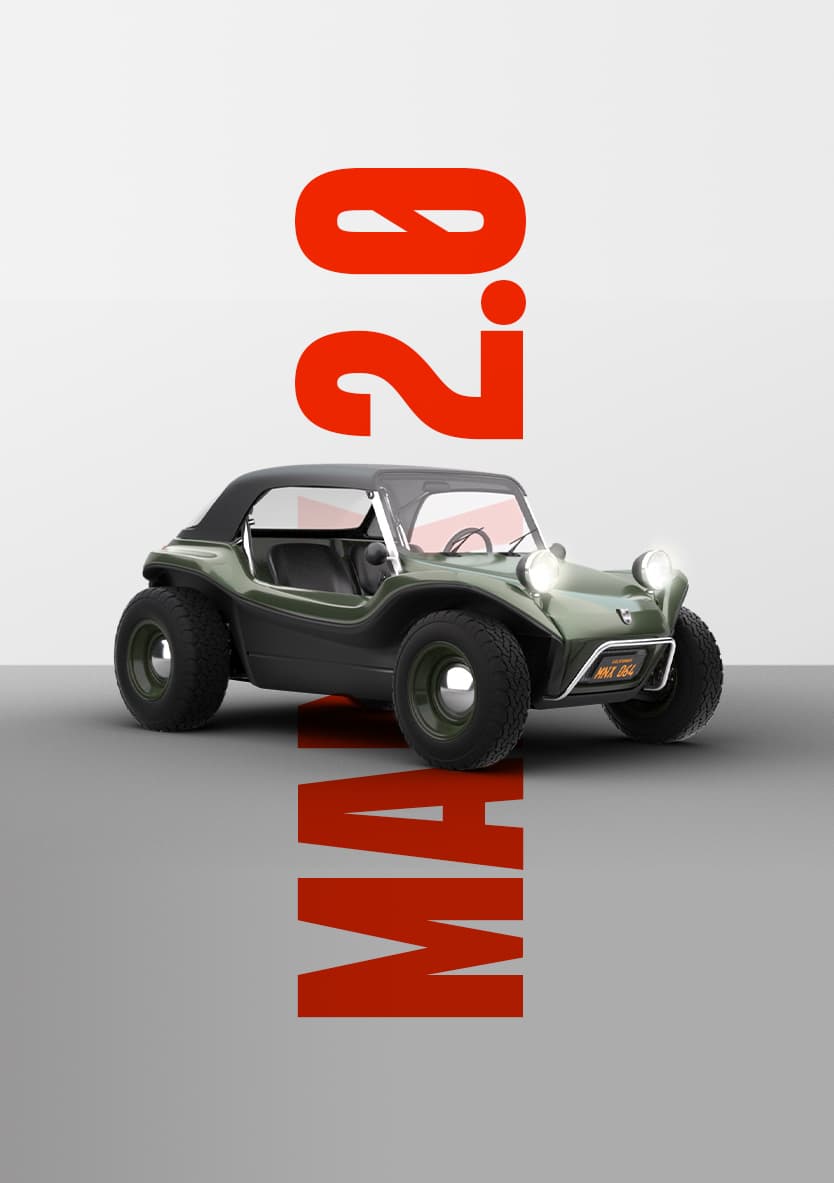

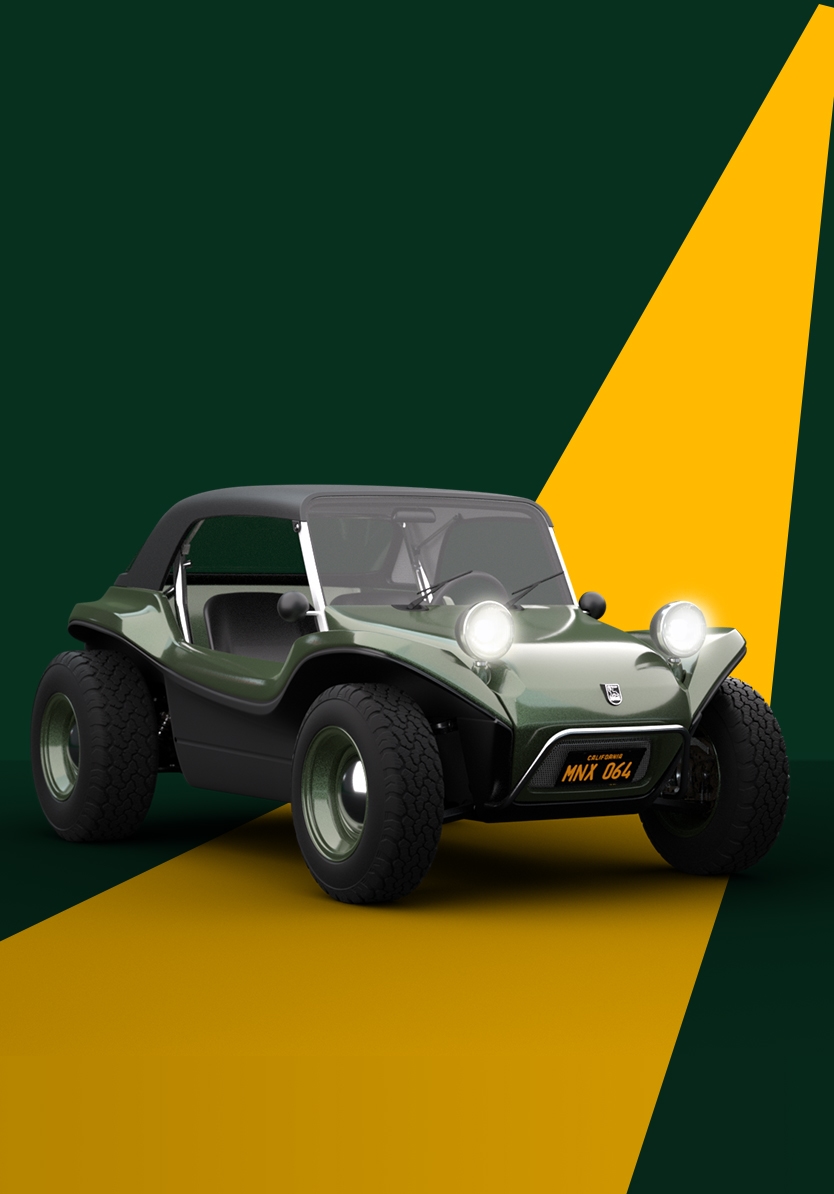

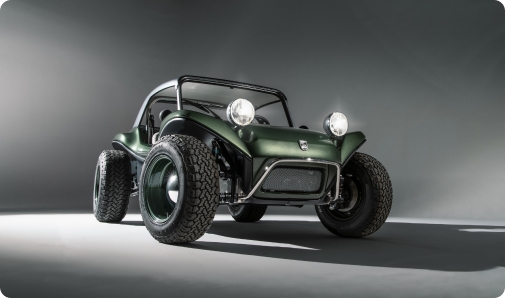

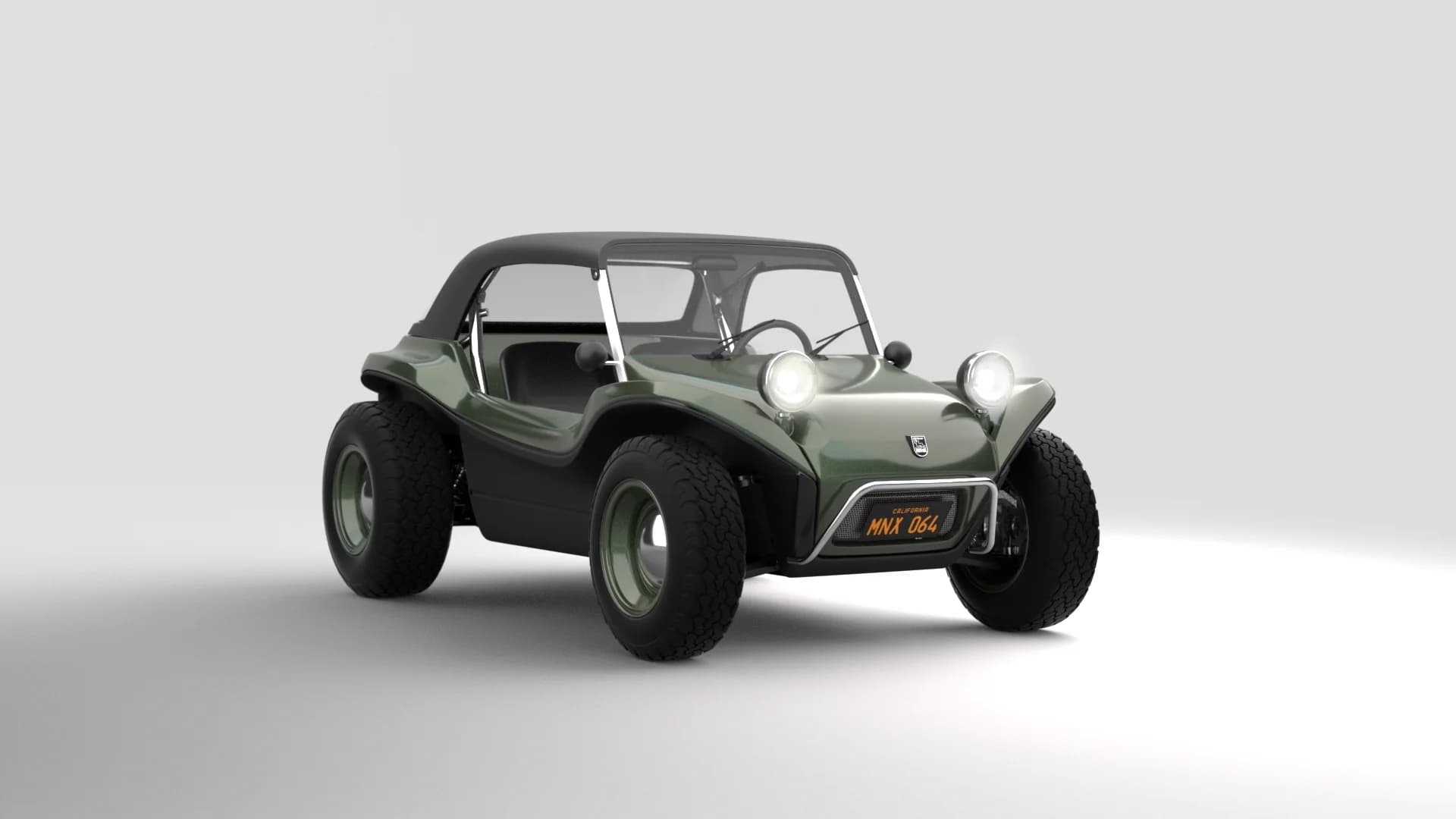

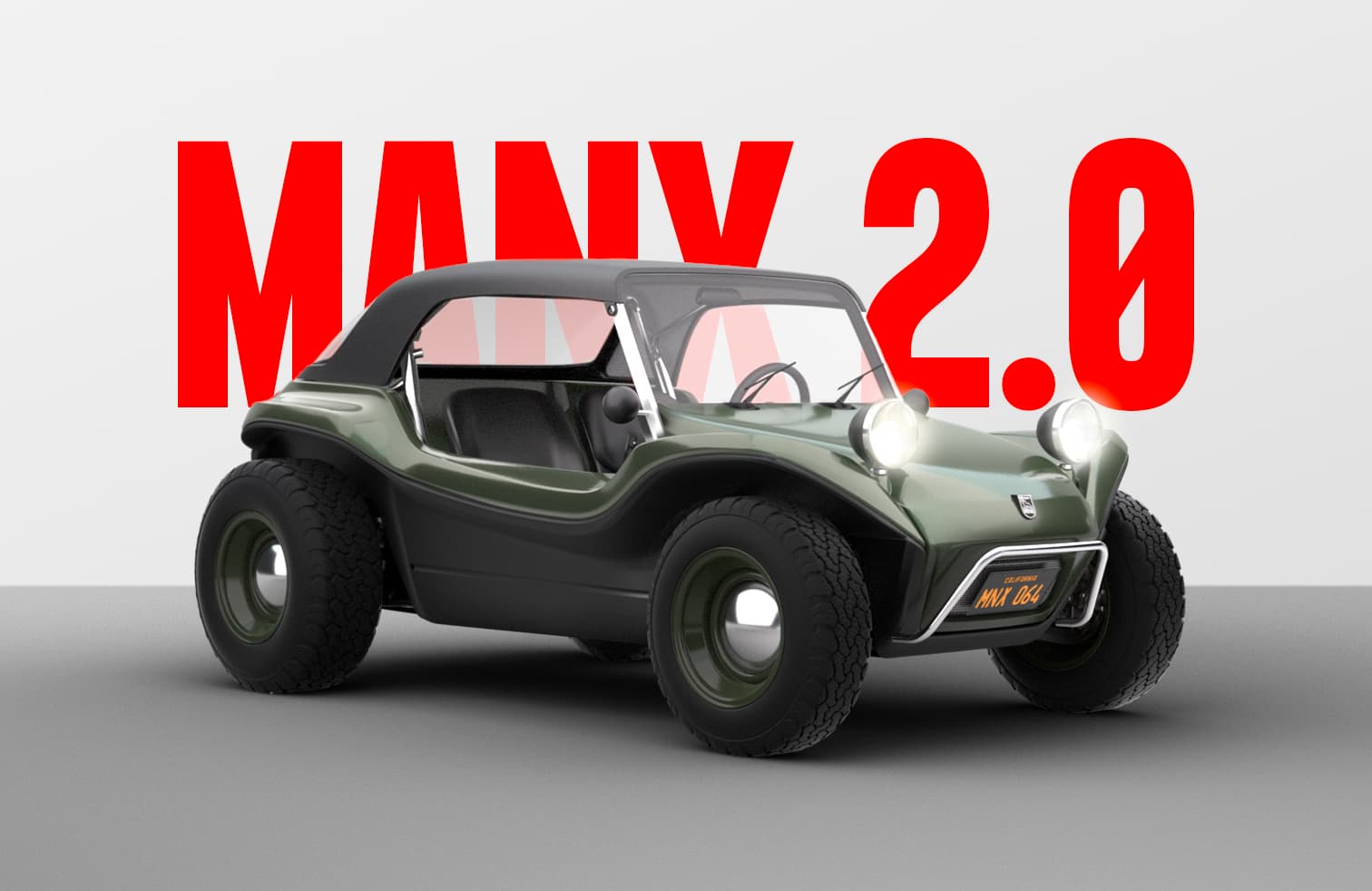

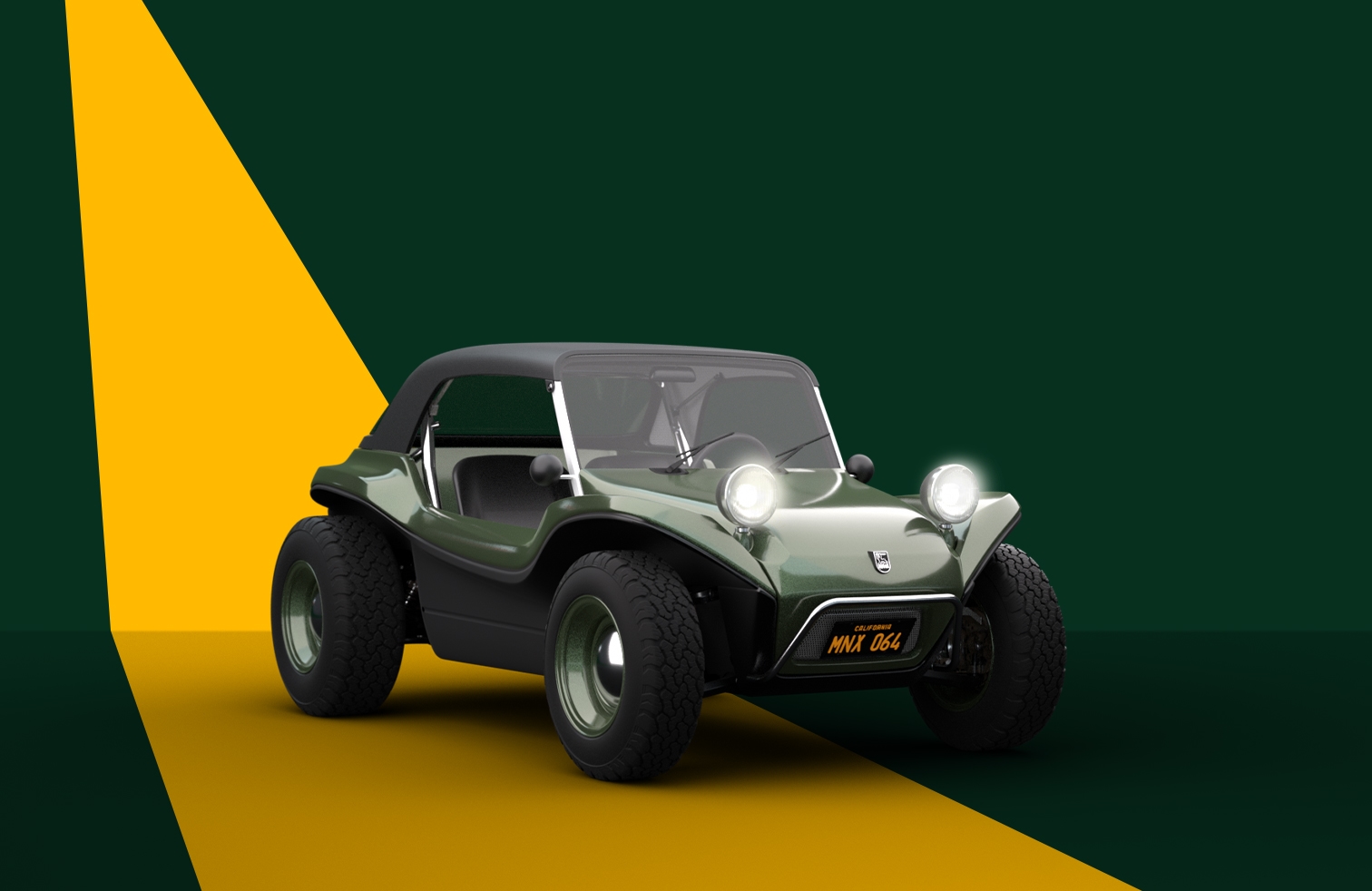

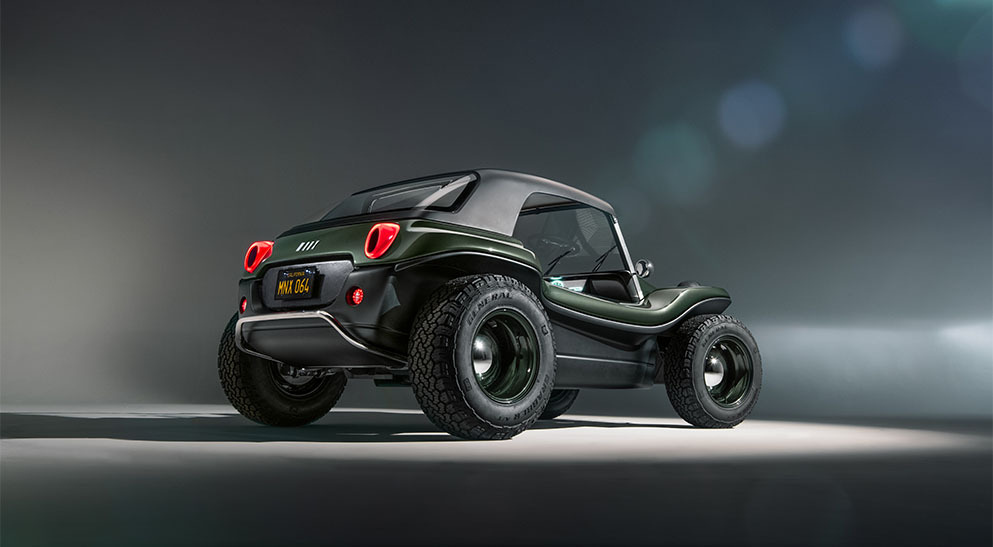

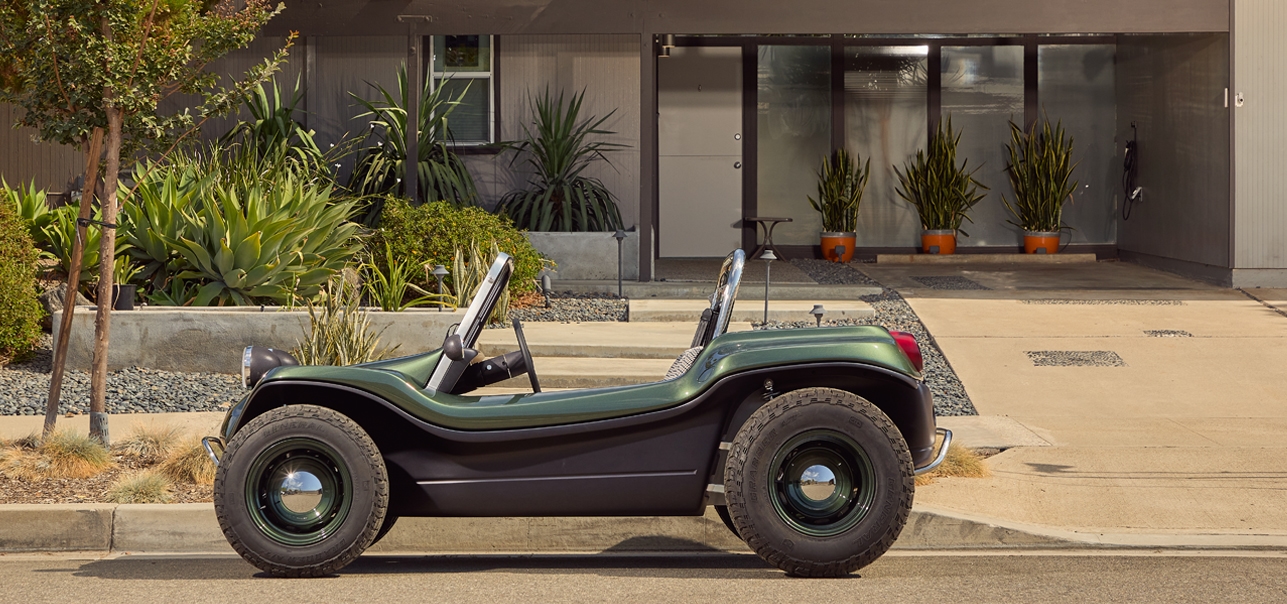

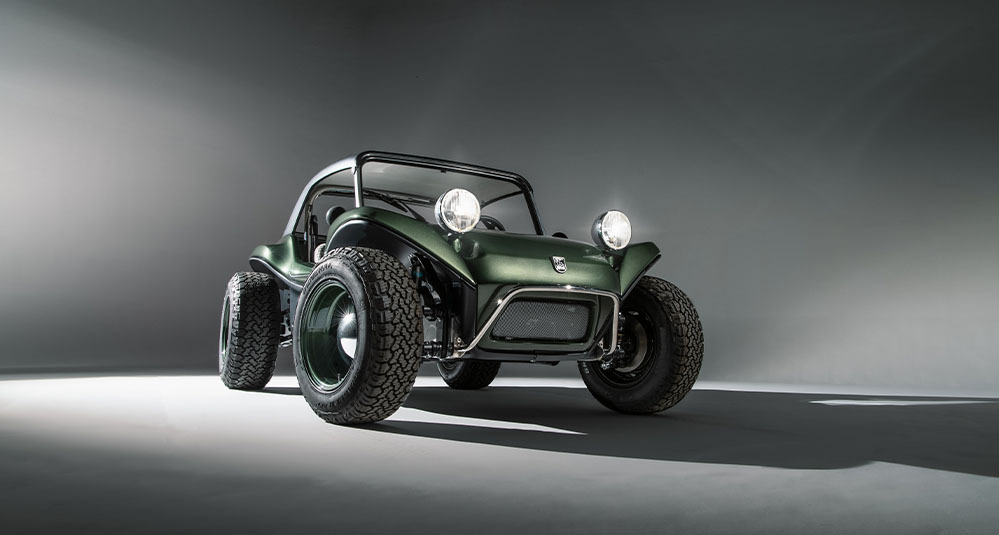

meyers manx 2.0specifications
Dimensions
- Length: 123.5 in / 3137 mm
- Width: 70.3 in / 1786 mm
- Height: 53.3 in / 1354 mm
Target weight
- 1500 lbs (est.) with 20 kWh battery Curb
- 1650 lbs (est.) with 40 kWh battery
Battery
- 20 kWh / TBD hp / 150-mile range
- 40 kWh / 202 hp, up to 240 ft lbs torque / 300-mile range
- Lithium-ion pouch cells with integrated BMS (Battery Management System)
- RFID Wristband / RFID card immobilizer for access control (future accessible by phone app)
Energy System
- 1k standard charging
- Onboard 6 kW Charging System Unit
- DC fast charge up to 60 kW (optional)

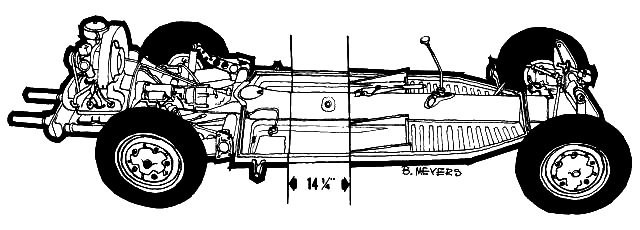

Chassis
& Suspension
- All aluminum monocoque
- Independent Rear Suspension (IRS)
Brakes
- Front and rear disc brakes; regenerative rear brakes
- Electric Assist Steering
- Electric E-Brake
Powertrain
- 2 Electric motors provide precise control of each rear wheel
- Motor, Inverter, Gear Train, and Brakes are housed in a single unit
- 40 kW 0-60 in 4.5 seconds (est., with 40 kWh battery)
- Rear Wheel Drive
